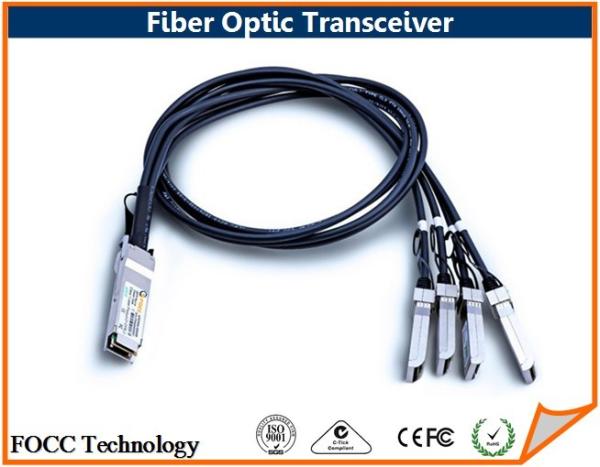

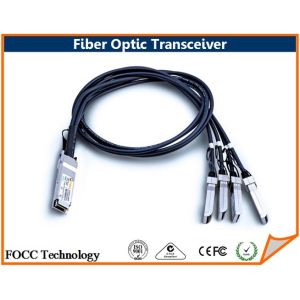

Bidirectional 40GbE Fiber Optic Transceiver AWG30 of QSFP+ Cable Assemblies
This kind of QSFP+ (Quad Small Form-factor Pluggable Plus) Cable Assemblies are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. QSFP+ cables are used for 40GBASE and Infniband standards, to maximize performance.
Features
Connector 1: QSFP+;
Connector 2: QSFP+;
Cable Type: 30, 28 AWG Copper;
High reliability
Low power consumption;
Excellent EMI performance;
Shielded copper twinaxial design for reduced skew rate and cross-talk;
RoHS Compliant;
QDR infiniband;
Compliant to the latest QSFP+ MSA.
Applications
4 independent full-duplex channels;
1G to 10.5 Gbps data rate per channel;
Support hot-pluggable;
Available in lengths of 1, 3, and 5m;
Metal with lower EMIl;
Excellent ESD protection;
Single 3.3V power supply;
RoHS Compliant and Lead-Free;
Compliant with IEEE802.3ba;
Compliant with QSFP+ MSA: SFF-8436.
Product Description
| Cable type | QSFP + CABLE |
| Wire AWG | 30 AWG |
| Rate | 40Gbps |
| Connector Type | QSFP + |
| Supply Voltage | + 3.3 V |
| Power Consumption (per end) | 0.57 W |
| Minimum Cable Bend Radius | 1 in. |
| Cable Characteristic Impedance | 100 ohm |
| Crosstalk Between Pairs | 2% maximum |
| Time Delay | 1.31 nsec / ft |
| Storage Temperature | - 40°C to + 85°C |
Key Mechanical Dimensions
Shipping By Those Follow Tools Or Customized Demand
FOCC Fiber Optic Transceiver Quality
Notes:
OEM and ODM
We can supply the parts according to your requirements, and design your demand label and packaging for your company.
Warranty
30-day money back guarantee;
3 years warranty.
